詳細情報 |
|||
| クランプ力: | 200t | 注入重量: | 456-662G |
|---|---|---|---|
| イジェクターストローク: | 75 mm | イジェクター力: | 48 kN |
| ショット量: | 678cm3 | 注入率: | 212 g/s |
| ネジ径: | 60 mm | ローバー距離: | 760mm |
| 機械重量: | 12000kg | オープンストローク: | 600 mm |
| 力: | 44.3 kW | ねじ打撃: | 260mm |
| オープニングフォース: | 22.4t | 回転式テーブルの直径: | 1500mm |
| 機械の寸法: | 3.0*2.2*3.6m | ||
| ハイライト: | 200T Clamping Force Vertical Injection Moulding Machine,High Productivity Rotary Table Injection Moulding Machine,1 Year Warranty Vertical Plastic Injection Moulding Machine |
||
製品の説明

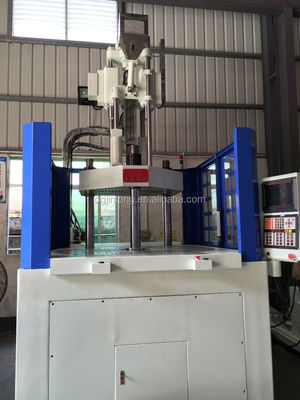

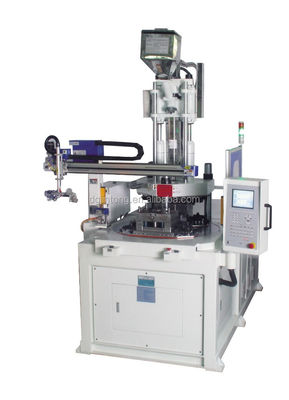

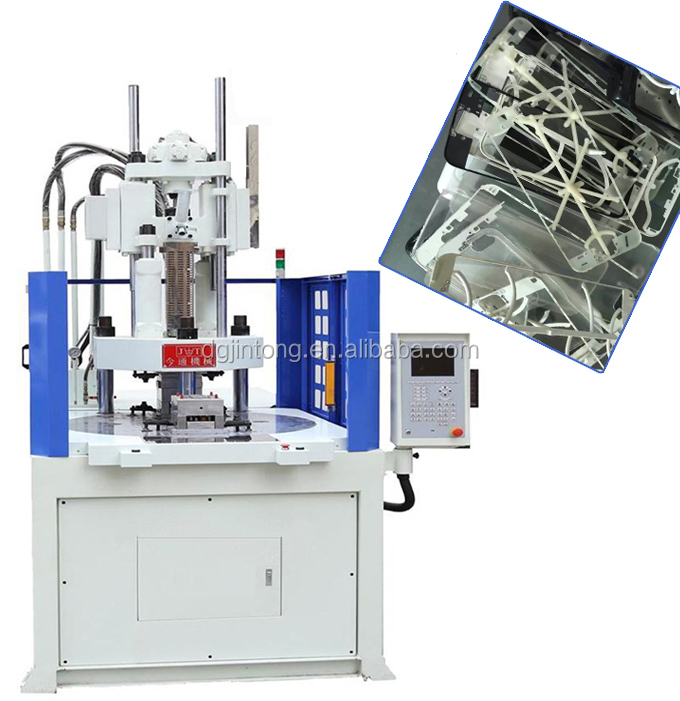

Rotary Table Vertical Plastic Injection Moulding Machine 200T (Model JTT-2000R)
Key Specifications
| Clamping Force | 200T |
|---|---|
| Injection Weight | 456-662g |
Product Description
Vertical clamping and injection system with rotary table functionality for efficient plastic molding operations.
Main Features
- Vertical clamping and injection system
- Adjustable clamping force, injection weight and shot speed
- Multiple station configurations (2, 3 or multi-station)
- Computer-controlled rotary table with forward, reverse, and alternating rotation
- Optional energy-saving motor available
- Easy torque, speed, and deceleration distance adjustment
Product Advantages
Energy Efficiency
Saves 30% energy compared to similar products using SIFU pump system
High Productivity
SIFU motor with max speed 2200/min increases oil pump output, improving productivity by over 15%
Thermal Management
Reduces cooling water requirement by 55% compared to similar machines
Quiet Operation
Optimized motor with imported bearing and oil pump reduces noise by 15-20db
Precision Molding
Closed-cycle control with pressure sensor and motor rotary encoder ensures product consistency
Service Advantage
With 17 years of customer service experience, we've developed systematic and standardized service processes including a 24-hour response mechanism to promptly resolve customer issues.
