商品の詳細:

起源の場所: 中国広州
ブランド名: JINTONG
モデル番号: JTT-850R

お支払配送条件:

最小注文数量: 1ピース
価格: $26,000-27,000 / piece
ベストプライス 連絡先

詳細情報
可塑化能力: 180 g/s 型の高さ: 110~450mm
イジェクター数: 2 イジェクターストローク: 75 mm
イジェクター力: 33 kN 理論ショット量: 276cm3
注入率: 167 g/s 注入重量: 330g
ねじ速度: 1 - 200 Rpm ネジ径: 50 mm
ネジL/D比: 25 ローバー間の距離: 560 mm
重さ: 4000 kg オープンストローク: 500 mm
力: 21.6 kW
ハイライト:

85T Vertical Injection Molding Machine

,

33 kN Ejector Force Rotary Injection Molding Machine

,

276 cm³ Theoretical Shot Volume Plastic Injection Molding Machine

製品の説明

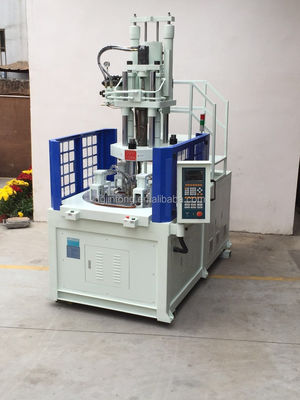

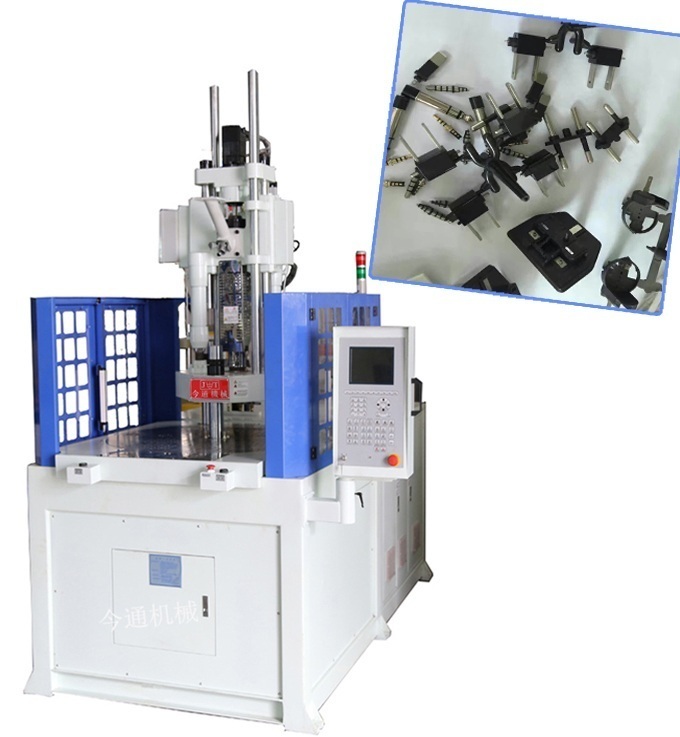

Full-auto Vertical Rotary Injection Molding Machine 85T
Product Description
Model: JTT-850R
Clamping Force: 85T
Injection Weight: 165-272g
  • Vertical clamping, vertical injection
  • Easy to set torque, speed, deceleration distance and stand number segmentation
  • Computer program control rotary table direction (forward-rotating, reverse-rotating, forward and reverse alternative rotating)
  • Optional energy-saving motor
Full-auto Vertical Rotary Injection Molding Machine 85T with 33 kN Ejector Force and 276 cm³ Theoretical Shot Volume 0 Full-auto Vertical Rotary Injection Molding Machine 85T with 33 kN Ejector Force and 276 cm³ Theoretical Shot Volume 1 Full-auto Vertical Rotary Injection Molding Machine 85T with 33 kN Ejector Force and 276 cm³ Theoretical Shot Volume 2 Full-auto Vertical Rotary Injection Molding Machine 85T with 33 kN Ejector Force and 276 cm³ Theoretical Shot Volume 3
Main Features
  • Vertical clamping, vertical injection
  • Clamping force, injection weight and shot speed can be adjusted according to actual demand
  • Available in 2 stations, 3 stations, or multi-station configurations (one up die, two or four down die)
  • Easy operation for insert parts, improves productivity
Certifications
Full-auto Vertical Rotary Injection Molding Machine 85T with 33 kN Ejector Force and 276 cm³ Theoretical Shot Volume 4 Full-auto Vertical Rotary Injection Molding Machine 85T with 33 kN Ejector Force and 276 cm³ Theoretical Shot Volume 5 Full-auto Vertical Rotary Injection Molding Machine 85T with 33 kN Ejector Force and 276 cm³ Theoretical Shot Volume 6 Full-auto Vertical Rotary Injection Molding Machine 85T with 33 kN Ejector Force and 276 cm³ Theoretical Shot Volume 7

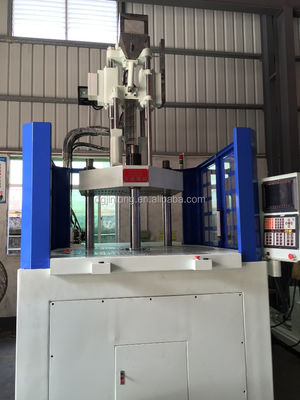

Detailed Images
Full-auto Vertical Rotary Injection Molding Machine 85T with 33 kN Ejector Force and 276 cm³ Theoretical Shot Volume 8 Full-auto Vertical Rotary Injection Molding Machine 85T with 33 kN Ejector Force and 276 cm³ Theoretical Shot Volume 9 Full-auto Vertical Rotary Injection Molding Machine 85T with 33 kN Ejector Force and 276 cm³ Theoretical Shot Volume 10 Full-auto Vertical Rotary Injection Molding Machine 85T with 33 kN Ejector Force and 276 cm³ Theoretical Shot Volume 11 Full-auto Vertical Rotary Injection Molding Machine 85T with 33 kN Ejector Force and 276 cm³ Theoretical Shot Volume 12
Product Advantages
  • Energy-saving: Saves 30% energy compared to similar products using SIFU pump system
  • High efficiency: SIFU motor with max speed 2200/min increases oil pump output and improves productivity by over 15%
  • Low heating: Saves 55% cooling water quantity compared to similar products
  • Low noise: Optimized motor working condition with imported bearing and oil pump reduces noise by 15-20db
  • Precision: Complete close-cycle control with pressure sensor and motor rotary encoder improves product consistency
Service Advantage
17 years of customer service experience with a systematic and standardized service process. We maintain a 24-hour response mechanism to promptly solve customer problems and provide excellent service.
Packing & Delivery
Full-auto Vertical Rotary Injection Molding Machine 85T with 33 kN Ejector Force and 276 cm³ Theoretical Shot Volume 13 Full-auto Vertical Rotary Injection Molding Machine 85T with 33 kN Ejector Force and 276 cm³ Theoretical Shot Volume 14 Full-auto Vertical Rotary Injection Molding Machine 85T with 33 kN Ejector Force and 276 cm³ Theoretical Shot Volume 15 Full-auto Vertical Rotary Injection Molding Machine 85T with 33 kN Ejector Force and 276 cm³ Theoretical Shot Volume 16 Full-auto Vertical Rotary Injection Molding Machine 85T with 33 kN Ejector Force and 276 cm³ Theoretical Shot Volume 17
