詳細情報 |
|||
| 可塑化能力: | 400g/s | 型の高さ: | 260〜530mm |
|---|---|---|---|
| イジェクターストローク: | 75 mm | イジェクター力: | 34kN |
| ショット量: | 570cm3 | 注入率: | 202g/s |
| 注入重量: | 513g | ねじ速度: | 1〜155回転/分 |
| ネジ径: | 55のmm | スクロール L/D: | 28 |
| ローバー距離: | 660mm | 機械重量: | 7000 kg |
| オープンストローク: | 500 mm | 力: | 22 kW |
| 機械の寸法: | 2.8*2.1*3.4 m | ||
| ハイライト: | 160T Clamping Force Vertical Injection Molding Machine,1 Year Warranty Vertical Injection Molding Machine,Vertical Clamping Plastic Injection Molding Machine |
||
製品の説明

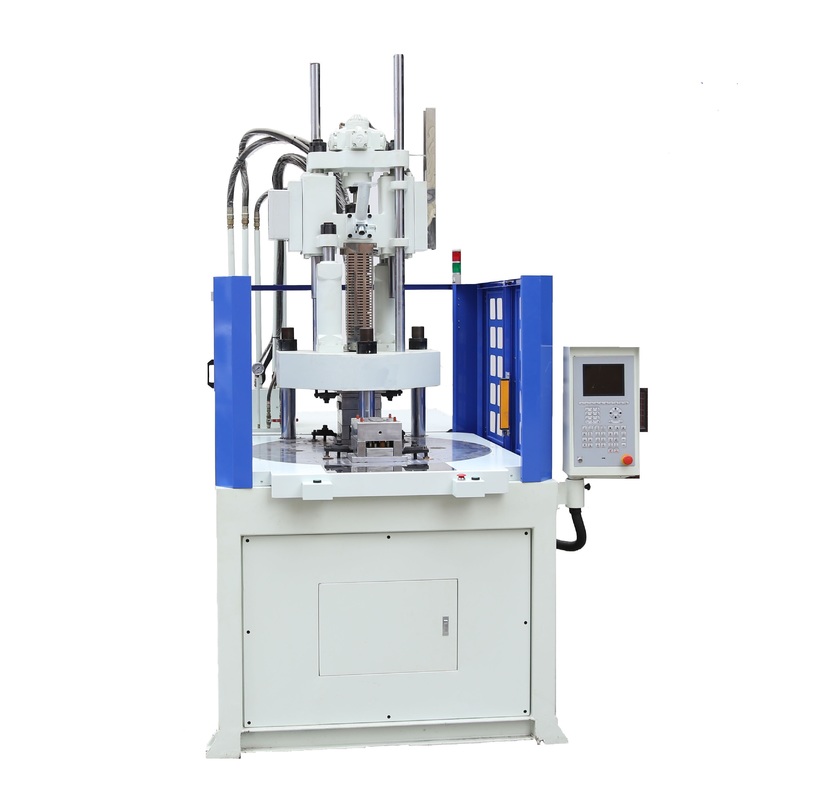

Vertical Rotary Injection Molding Machine JTT-1600R
Key Specifications
| Clamping Force | 160T |
| Injection Weight | 344-513g |
Product Features
- Vertical clamping and vertical injection design
- Easy torque, speed, and deceleration distance adjustment
- Computer-controlled rotary table with multiple rotation modes
- Optional energy-saving motor available
- Adjustable clamping force, injection weight, and shot speed
- Multi-station configuration options (2, 3, or more stations)

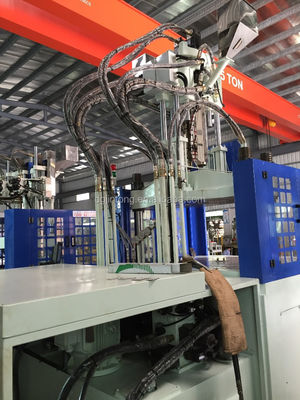

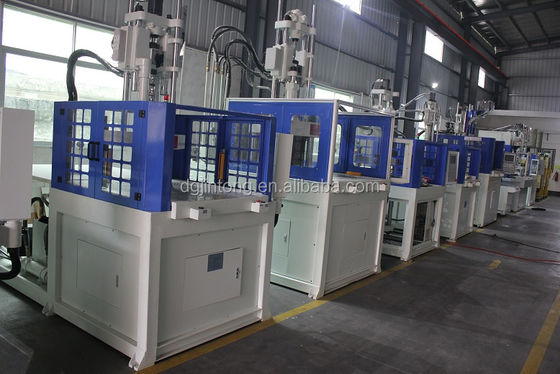

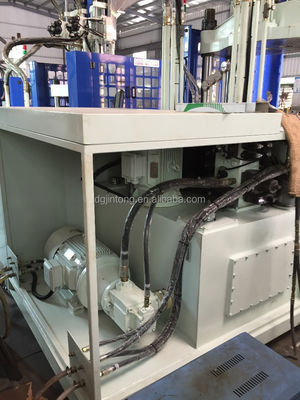

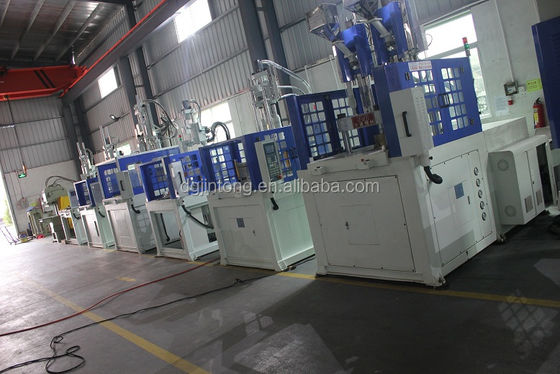

Product Images
Technical Advantages
Energy-saving: Saves 30% energy compared to similar products using SIFU pump system
High efficiency: SIFU motor with max speed 2200/min increases productivity by 15%
Low heating: Reduces cooling water requirement by 55%
Low noise: Optimized motor operation reduces noise by 15-20db
Precision: Closed-cycle control with pressure sensor and motor rotary encoder for consistent output
Service Commitment
With 17 years of experience, we've developed systematic service processes and maintain a 24-hour response mechanism to promptly address customer needs and provide optimal solutions.
Packaging & Delivery
