詳細情報 |
|||
| 可塑化能力: | 150 g/s | 型の高さ: | 160~300mm |
|---|---|---|---|
| イジェクター数: | 2 | イジェクターストローク: | 60 mm |
| イジェクター力: | 1.8 kN | 理論ショット量: | 170cm3 |
| 注入率: | 113 g/s | 注入重量: | 141g |
| ねじ速度: | 0〜215回転/分 | ネジ径: | 40 mm |
| ネジL/D比: | 22 | ローバー間の距離: | 510のmm |
| 重さ: | 2400kg | オープンストローク: | 540mm |
| 力: | 12.8 KW | ||
| ハイライト: | 55T Clamping Force Rotary Table Plastic Injection Molding Machine,High-accuracy Rotary Table Plastic Injection Molding Machine,1 Year Warranty Rotary Table Plastic Injection Molding Machine |
||
製品の説明

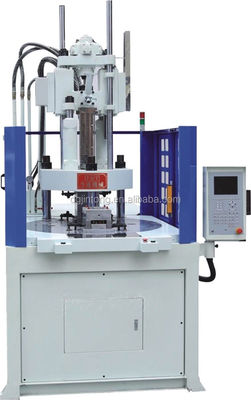

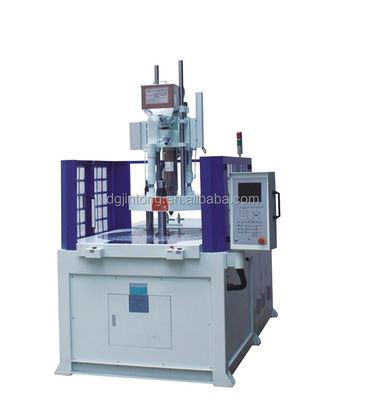

Best Seller Rotary Table Plastic Injection Molding Machine 55T
Product Description
Best seller rotary table plastic injection molding machine JTT-550R
Clamping Force: 55T
Injection Weight: 80-141g
- Vertical clamping, vertical injection
- Easy to set torque, speed, deceleration distance and stand number segmentation
- Computer program control rotary table direction: forward-rotating, reverse-rotating, forward and reverse alternative rotating
- Optional energy-saving motor
Main Features
- Vertical clamping, vertical injection
- Clamping force, injection weight and shot speed can be changed according to actual demand
- 2 stations, 3 stations, multi-station (one up die, two or four down die), easy for operating insert parts, improves productivity
Certifications
Detailed Images
Product Advantages
Energy-saving:
Save 30% energy compared to similar products by using SIFU pump system
High efficiency:
SIFU motor has max speed 2200/min to increase oil pump output and improve more than 15% productivity speed
Low heating:
Save 55% cooling water quantity at least compared to similar products
Low noise:
Optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise
Precision:
Use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency
Service Advantage
17 years of customer service experience and summarizing customer feedback, Jintong has developed a systematic and standardized service process, and also established a 24-hour response mechanism to ensure timely resolution of customer problems and provide perfect service as soon as possible.
Packing & Delivery
